The Flowchart View

The Flowchart View allows visually editing a flowchart by setting up nodes, making connections between the nodes to form a tree structure and adding information that will be associated with each node. See also the manual section for flowcharts.

Asides from showing the nodes and the connections between them, there is also a status bar at the bottom which displays the current zoom level, the caption of the last selected node and the index, and the name and value of the last selected output.

Adding and deleting nodes

To add new nodes, right-click in any empty space of the flowchart view and tap the Add node option.

To delete a node you can do one of two things:

• Right-click on the caption of a node or any part which is not an output and choose the Delete option.
• Press Backspace or Delete after a node has been selected.

Editing nodes

Once a node has been created, there are a number of things that can be edited about them, including:

Adding outputs

This can be done by:

• Right-clicking on the node and choosing the Add option from the context menu.


• Clicking on the Add link at the bottom left of each node.


• Clicking the Add link in the Properties Bar when it is showing properties for a node.

Context menu option	Node link	Properties bar

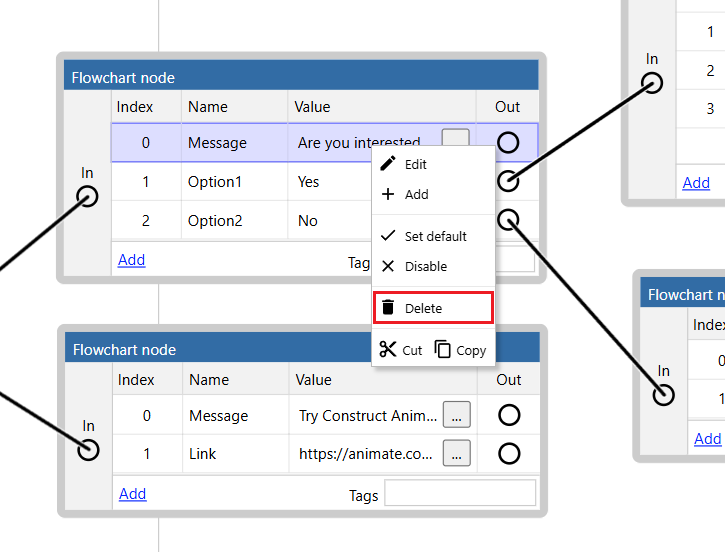

Deleting outputs

This can be done by:

• Right-clicking on the output and choosing the Delete option from the context menu.


• Clicking the corresponding Remove link in the Properties bar when it is showing properties for a node.

Context menu option	Properties bar

Editing the tag

This can be done by:

• Typing in the labelled text box in the node itself.


• Editing the corresponding property in the Properties bar.

Tag text box	Properties bar

Editing an output's name

This can be done by:

• Double clicking on an output's name.


• Right-clicking on an output's name and choosing the Edit option.


• Editing the corresponding property in the Properties bar.

Context menu option	Properties bar

Editing an output's value

This can be done by:

• Double clicking on an output's value.


• Right-clicking on an output's value and choosing the Edit option.


• Clicking on the button next to the value.


• Editing the corresponding property in the Properties bar.

Button next to value	Properties bar

The Caption of a node can be edited from the Properties bar, by right clicking it and choosing the Edit caption option or by double clicking it on the corresponding node.

A few properties of nodes can only be edited from the Properties Bar, such as Start node and Color.

Sorting outputs in a node

After an output is added to a node it is possible to change its position by clicking and dragging it to be on top or below another output in the same node.

Connecting nodes

To connect two nodes click an output icon and then drag to the input of another node. This can be done the other way around too, clicking and dragging from an input icon into an output icon.

Input Icon	Output Icon

Unlinking nodes

To remove the connection between two nodes, right click on the corresponding output or input and choose the Unlink option from the context menu.

Links can also be selected by clicking on them (the cursor changes when clicking will select it), when a link is selected it will show as a "marching ants" animation and at that point it can be deleted by using the Backspace or Delete keys in the keyboard.

Unlink from Output Icon

Connecting many outputs to the same input

In the case of connecting multiple outputs to the same input, each of the parent nodes will start showing a Parent Index property, both in the node and the Properties bar.

The Parent Index can be used with some actions and expressions that need to choose which parent to use in the case a node has more than one.

Parent Index in node	Properties Bar

Moving and resizing nodes

Nodes can be moved by clicking and dragging from the caption and can be resized by clicking and dragging from the borders.

The columns in each node can also be resized by clicking and dragging between them.

Move drag	Resize drag	Column resize drag

Multi-selection

By holding Shift while selecting nodes and outputs it is possible to select multiple elements at the same time.

Doing this it is possible to delete multiple nodes and outputs at the same time as well as moving multiple nodes at the same time.

Rectangle selection tool

Clicking and dragging in empty space will trigger the appearance of a selection rectangle. Any nodes overlapping the rectangle when the pointer is released will be selected. If Shift is held down the nodes will be added to any existing selection.

Cut, copy and paste

Cut, copy and paste of nodes is supported through context menu options and the common keyboard shortcuts. Cutting or copying when there is an active multi-selection will perform the appropriate action on the whole selection.

Once there is flowchart content on the clipboard it is also possible to paste it in a different flowchart to the original.

Scrolling and Zooming

There are a few ways to scroll in the Flowchart View:

• Use the vertical and horizontal scrollbars at the edges of the view.
• Scroll the mouse wheel to scroll vertically. You can also hold Shift to scroll horizontally.
• Hold the middle mouse button and drag the mouse.
• Hold Space and move the mouse.

On desktop systems, middle-mouse dragging is probably the most convenient way to move around the flowchart.

To zoom hold Control (Meta on Mac) and scroll the mouse wheel.

Make sure to check the Keyboard shortcuts section of the manual for a complete list.

Managing complex flowcharts

When flowcharts start becoming large it can be difficult to keep track of what is going on just by looking at it.

These are a few features that can help with that:

Node colors

All nodes can be given a unique color which is applied to it's border. Helps highlight important nodes.

Output link colors

Each output can be given a unique color that is used to draw it's corresponding link. This can help to differentiate between links when it starts getting crowded. This property can only be changed from the properties of an output shown in the Properties Bar.

Output link mode

Each output can use two different methods to draw it's corresponding link. It can be either a straight line (default method), or it can use path finding so the link avoids overlapping other nodes. This can help in cases were a straight link is overlapping other nodes making the flowchart look messy. This property can only be changed from the properties of an output shown in the Properties Bar

Reference nodes

This types of nodes are used as a placeholder for a different flowchart. Can be useful to split up large flowcharts in more manageable chunks.

Comment nodes

This types of nodes are used to place comments directly in a flowchart.
