  • Update: I filed a bug for this and here's Ashley's answer:

    "All Construct 3's background color setting does is apply this CSS style:

    html, body {
 background: #000; /* based on "background color" project property */
}

    Construct 2 does not set that, and your JS code setting it is invalid because it relies on jQuery, which isn't included in C3. So I would assume you just need to find a valid way to apply that CSS style when exporting from C2. You could edit the CSS in the exported files directly, or update your executed JS code to not rely on jQuery."

    The code he's talking about is the one that has been proposed here:

    Sounds like this is using jQuery, which I have no idea what it is... ^^'

    Any idea how I can reformulate this without jQuery ? Or another way to have a white background ?

    What sounds weird to me is that I already edited the CSS in the exported file (index.html) in different ways and had no luck with that.

    Thanks for any further help!

  • Update:

    I created a bug entry for this and it seems like the Scirra team has already managed to solve the issue.

    github.com/Scirra/Construct-3-bugs/issues/2778

    Thanks a lot !

  • Try Construct 3

    Develop games in your browser. Powerful, performant & highly capable.

    Try Now Construct 3 users don't see these ads

  • Thanks again for the reply. I'll keep all this in mind for my next project. For this one however, I'll stick to C2, because while there is a workaround, it'll take a lot of time (days or weeks) to drop hundreds of different objects on hundreds of different layouts and rethink everything, and I'm still afraid there could be RAM issues in the end.

    So if anyone has a solution to hide the status bar on iPhone 7 & 8 for a project exported with C2+C3 export manager, I created a thread here.

    And for the bug of the black background which can't be set to white on iPhone X, I created a thread here.

    Thanks!

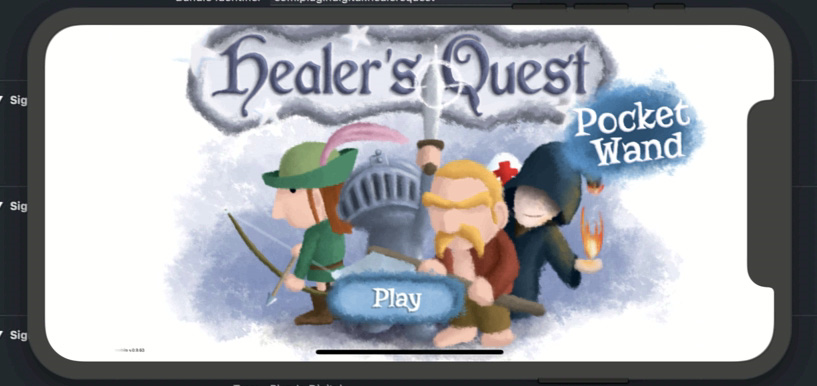

  • For the record, exporting the game to C3 solved the issue immediately, but I have other problems arrising, so I'd like to come back to C2.

    At this point I think it's a problem with View Controller in Xcode and that no C2 or CSS based solutions will work.

    Someone know something about it?

  • Hi everyone,

    I exported my game to iOS through C2 Cordova export, then C3 export manager.

    The problem I have is that on iPhone 7 and 8, the status bar is still visible. It's not visible however on iPhone X.

    I obviously checked the option to hide the status bar in both Construct 2 and Xcode, but it didn't work.

    This is probably a problem with the view controller in Xcode.

    Any idea how I can do this ?

    Thanks !

  • Thanks for your reply

    Ashley

    I don’t have measurment other than my game passing from not crashing to crashing. :)

    I would be glad to send you the project file if it could help, but last time I send it you told me that there were too many third party addons required. Which is also part of why it took me so long to update to C3 and I’m still unable to use C3 runtime.

    I have no doubt that in most situations C3’s spritesheet system is much better than C2’s, and you sure did an amazing job with it. Just in this situation it doesn’t seem optimal. Thanks for the info about the way it’s working. I use a “container” layout which regroups most sprites from the game on a single layout (even though some of them are also dispatched amongst other layouts for loading reasons), from what you say I understand this could be a big part of the problem.

    Biggest problem: performance drop

    I didn’t mention it earlier, but another big problem I have using C3 instead of C2 is the huge performance drop. It runs very poorly on the C3 exported version while C2 was completely fluid (50-60 fps at all times on a mobile phone). To be more precise, there are sometimes freezes of 0.5 up to 1 second in the middle of the gameplay.

    My theory about this is the following: Healer’s Quest sometimes needs to load very small images that are not present on the layout in the editor (they are too situational and there are too many of them to load them all on all layouts). With C3’s spritesheet system, these very small objects may be part of a big unloaded 1024x1024 pixel spritesheet (if not dispatched amongst 3 different 1024x1024 pixels spritesheets), and the game freezes while the spritesheet is loaded. I already put the maximum spritesheet size to 1024x1024 and it didn't help.

    To be complete, I should say that these big freezes not only happen on my phone, but also on my computer when previewing the game, which never happened with C2.

    I even recorded a video of the freezes happening on my computer, here is a link to it:

    youtube.com/watch

    I think at least two of the 3 freezes in the video happened due to the loading of a new object.

    From all this, I conclude that my game has been developed with C2 in mind, and it just doesn’t suit the way C3 works. Don’t get me wrong, I already use C3 for my next project, and it’s much, MUCH better than C2! I’m just saying that Healer’s Quest works better as a C2 game unless I take weeks to completely rework the code...

    To reply to BadMario , Healer’s Quest is already split into something like 300 layouts, but the container layout is probably a big part of the problem.

  • Thanks for all the replies.

    I didn't change the image compression format inside C3, I use tinyPNG to recompress everything.

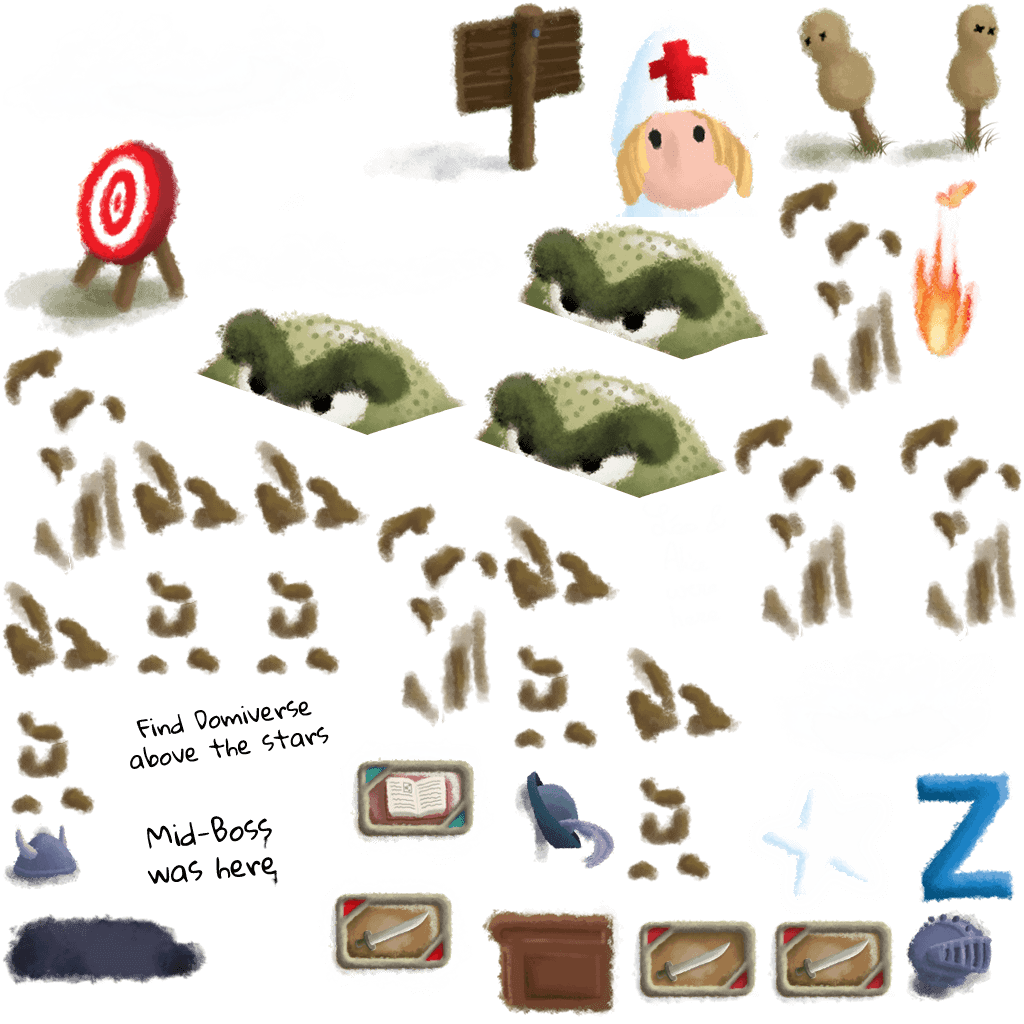

    Ashley , here is an image from the exported image folder in C3. It contains images from roughly 15 or 20 different objects in the game. That means in every layout where any of these object appears, the whole 1024x1024 image is loaded in memory... In addition to many others.

    So if I'm correct the RAM usage is MUCH higher than if every object type had its own spritesheet, as in C2. This is probably why the game is crashing all the time when exported with C3.

    The secondary (less problematic, but still) problem, is that with so many different colors on one image, tinyPNG's compression gets very crappy.

  • Hi, I'd like to disable the spritesheet system used by Construct 3 and return to the C2 system.

    The reason why I need to do this is that I need to apply a lot of lossy compression on my images so that the game can be reduced to less than 100Mb in order to be uploaded on Google Play. If I do that on the shared spritesheet, the quality is unacceptable (too many different colors on the same file for the compression to look correct).

    Also, the game exported with C3 crashes sometimes, while this never happened with the C2 export. Unless I'm missing something, this is probably due to the different object used on the same spritesheets, which may saturate memory.

    For these two reasons, I'd like to revert to the C2 spritesheet system. If another way of dealing with the problems I have exist, I'm interested in learning about it.

    Thanks!

  • I started this thread construct.net/en/forum/construct-2/how-do-i-18/can-i-replace-the-black-bars-o-141559 as I'm unable to get a correct export for iPhone, but it seems to be related to this thread also.

    For a brief explanation of my problem:

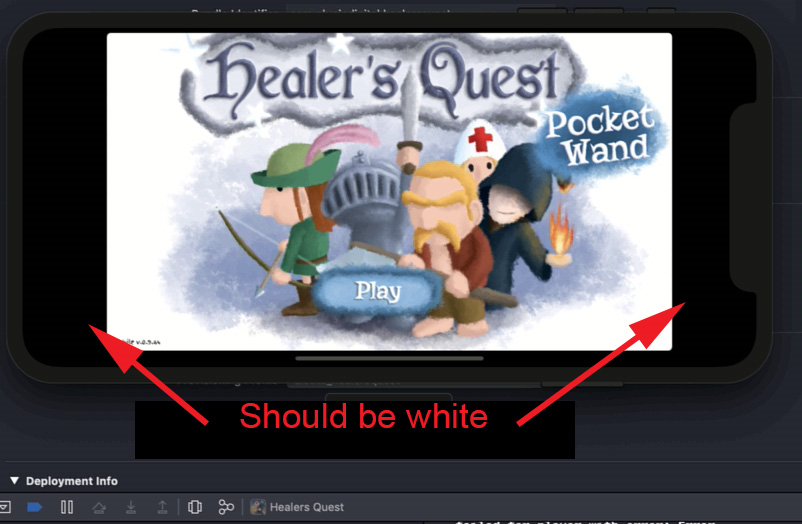

    - I can't get the background of an iPhone X game to be white (white bars in letterbox scale instead of black bars).

    - On iPhone 7 & 8, the background is white, but the status bar is apparent.

    - It's a Construct 2 project exported with C3 export manager.

    Seems like some people here have the same kind of problems. Any solution has been found for these?

    I need to publish my game SOON (publisher involved) so if someone has a quick (even ugly) solution it would be greatly appreciated.

    Thanks!

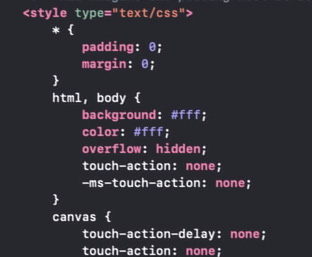

  • After modifying everything possible in the index.html file, and modifying the config.xml file as suggested by Asmodean , it looks like nothing works. The background in the Simulator stays black whatever I tried.

    I found a video which may help:

    Subscribe to Construct videos now

    But the guy is using Swift.

    However, I checked the list of files I have in Xcode and looks like I have files named MainViewController

    Maybe the white background should be specified in Xcode itself.

    Do you have an idea of how to do it Ashley ? (having white letterbox scale bars instead of black one when a project is exported to iOS via Xcode)

    It seems like anything I try with the index.html or config.xml has no effect...

    Thanks in advance for any further idea.

  • To keep you updated, the .png file as an image background that newt proposed didn't work. I've tested it on PC first and it worked like a charm, but as for the other methods, the black bars of the iOS version are still there when exported into Xcode.

    I sent a newer version with the XML modification to my publisher, I'll try that tomorrow, but I start to be dubious about the feasibility of this. It seems like Apple is blocking the color of the background to black. Maybe this has to be set in Xcode directly?

    I looked for it already but didn't find anything...

    Thanks for your help so far!

  • Hi newt ,

    No, I didn't try using a png yet. Could you tell me how I should proceed?

    That's a line to add in the index.html body?

    Thanks a lot in advance! :)
