A lot of the core events to control the dialogue in this scenario are the same as the previous tutorial, but with a different control system and a little extra bit of control over the dialogues called.

The first thing to set up is the button control to open the dialogue. The Z key acts as the interaction key and is used for initiating and progressing the dialogue. This event block includes quite the cascade of sub-events, so I’ll break down the explanation slightly. Plus, in order to help demonstrate which level each sub-event is on underneath the main condition, I’ll add a letter, A, B, C or D. Then there’ll be a screenshot of the event block at the end of the explanation.

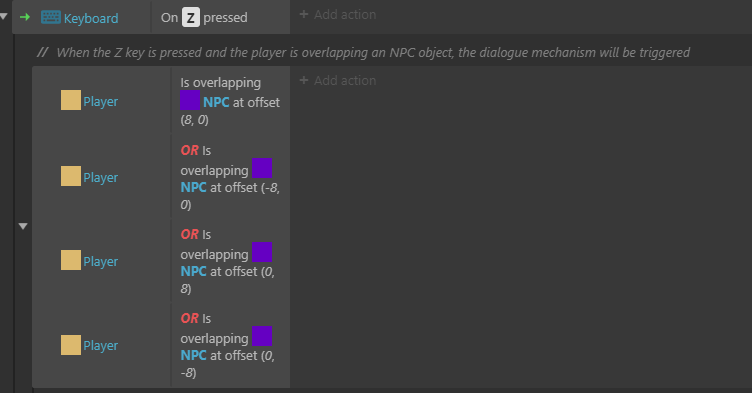

To begin with:

Condition

Keyboard ▶︎ On Z key pressed

Sub-event Condition

Sub-event level: A

Player ▶︎ Is overlapping NPC at offset (8,0)

OR

Player ▶︎ Is overlapping NPC at offset (-8,0)

OR

Player ▶︎ Is overlapping NPC at offset (0,8)

OR

Player ▶︎ Is overlapping NPC at offset (-8,0)

These first two levels simply tell the game that something needs to happen when the Z key is pressed, but only if the player is overlapping one of the NPC objects. Carrying on, we need a pair of sub-events on the same tier to co:

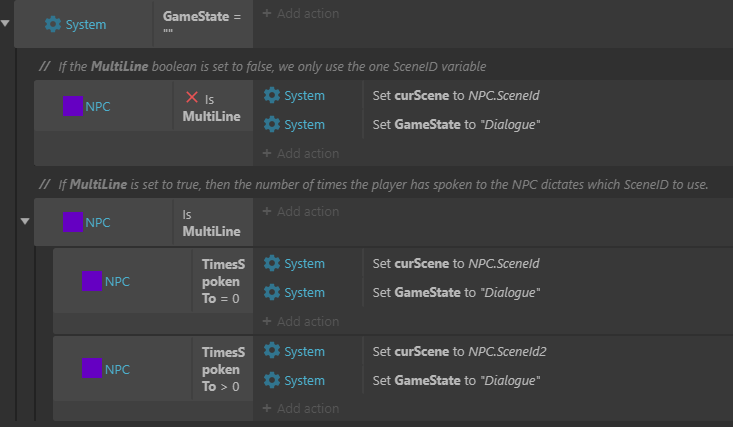

Sub-event Condition

Sub-event level B

System ▶︎ Game State = “”

Sub-event Condition

Sub-event level C

NPC ▶︎ Is NOT MultiLine

Sub-event Action

System ▶︎ Set curScene to NPC.SceneID

System ▶︎ Set GameState to “Dialogue”

Sub-event Condition

Sub-event level C

NPC ▶︎ Is MultiLine

Sub-event Condition

Sub-event level D

NPC ▶︎ TimesSpokenTo = 0

Sub-event Action

System ▶︎ Set curScene to NPC.SceneID

System ▶︎ Set GameState to “Dialogue”

Sub-event Condition

Sub-event Level D

NPC ▶︎ TimesSpokenTo > 0

Sub-event Action

System ▶︎ Set curScene to NPC.SceneID2

System ▶︎ Set GameState to “Dialogue”

The above sub-events check a few things before the dialogue begins, including whether or not an NPC has multiple sets of dialogue available, and how many times the NPC has been spoken to. Once the Scene is set, the GameState changes to allow Dialogue to begin. Next, we need to define what happens when the GameState is Dialogue, still continuing from the previous nested event block:

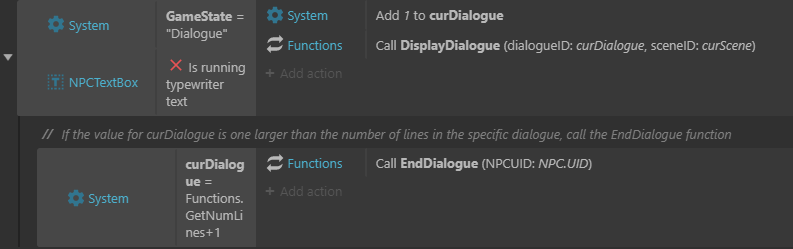

Sub-event Condition

Sub-event level B

System ▶︎ GameState = “Dialogue”

NPCTextBox ▶︎ Is NOT running typewriter text

Sub-event Action

System ▶︎ Add 1 to curDialogue

Functions ▶︎ Call DisplayDialogue (dialogueID: curDialogue, sceneID: curScene)

Sub-event Condition

Sub-event level C

System ▶︎ curDialogue = Functions.GetNumLines+1

Sub-event Action

Functions ▶︎ Call EndDialogue (NPCUID: NPC.UID)

This is finally the end of the nested event block for the Z key. In this last bit, the game checks how to progress with the dialogue. If there are still lines left, it waits until the current one has finished displaying before loading the next. If there are no lines left, the dialogue is ended.

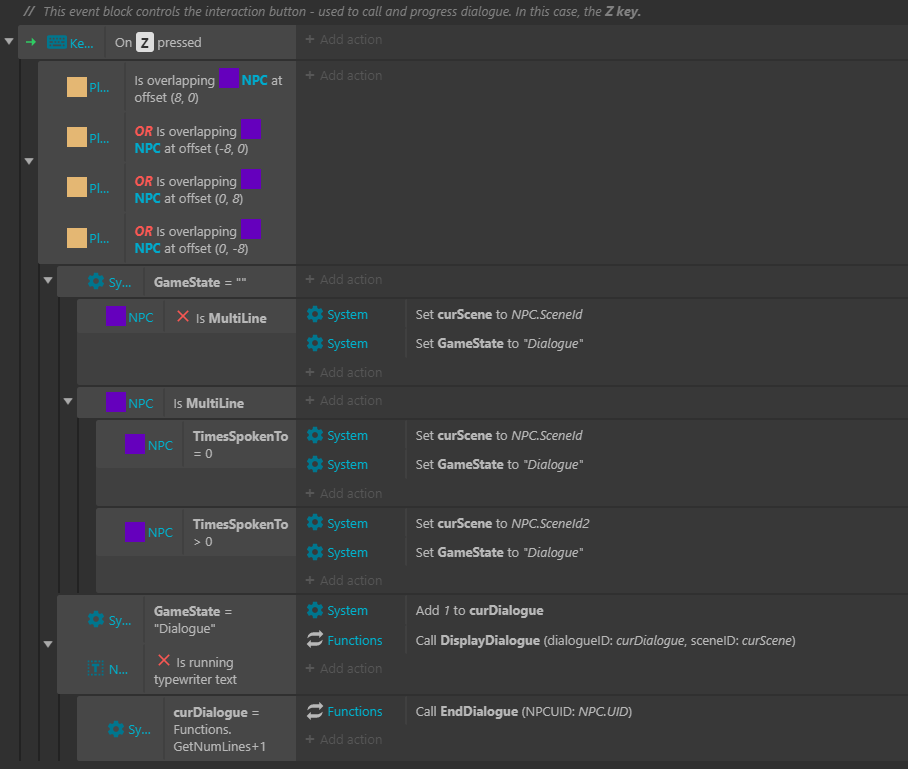

The final event block should look like this:

At this point, the dialogue system is functional. Text is displayed, each NPC shows different text depending on what instance variables you’ve assigned to them and once they’ve said everything, the dialogue layer is rehidden. But there are some tweaks we can make to improve this slightly, which will be covered in the next section.
