Initialisation🖍

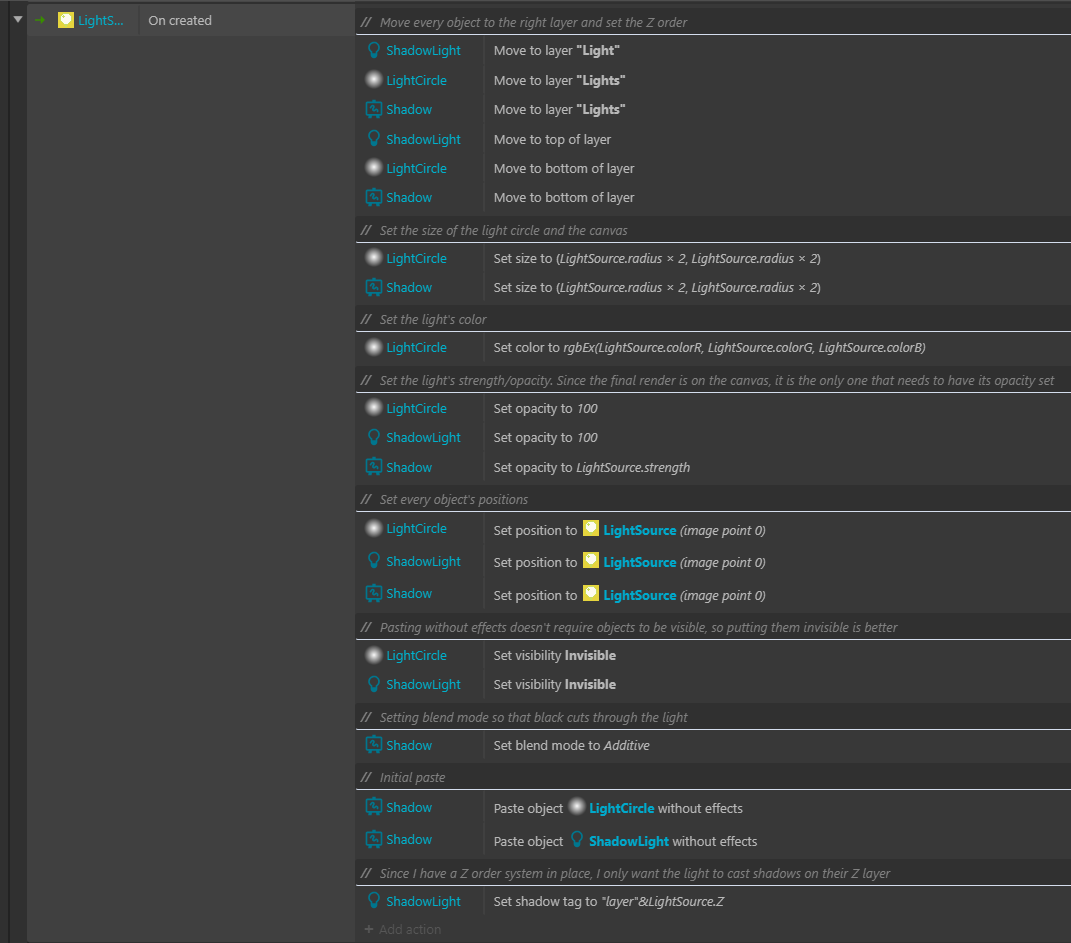

Upon creating the Lights we need to setup a few things:

We need to

  • Move every object to the right layer
  • Resize the canvas and light circle to the inputed radius
  • Tint the light source to the right color using C3's built in tint
  • Set the opacity of the canvas to the inputed strength
  • Move the objects to the right position
  • Set the shadow light and light circle to invisible
  • Set the canvas to additive blend mode
  • Paste the light circle and shadow light
  • I am using this Z order system for my game

    construct.net/en/courses/making-order-system-19 , so I also set the shadow light's casting tags to the light's z Layer

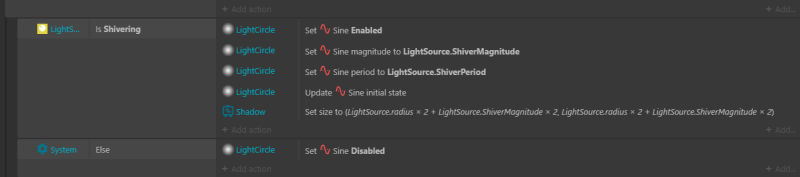

We also need to setup the sine animation if it is being used

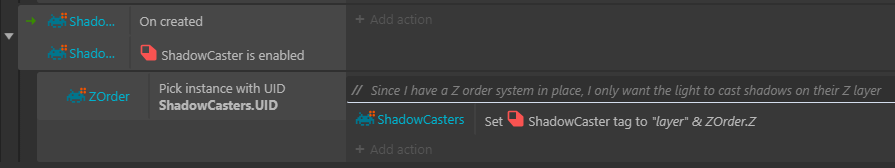

I also needed to setup my Shadow Caster objects that are also part of the Z order family to get the right casting tag as well.
