1D Array

There is an json.

{
	"name": "Fruit",
	"items": [
		"Apple",
		"Banana",
		"Cherry",
		"Strawberry",
		"Mango",
		"Kiwi"
	]
}

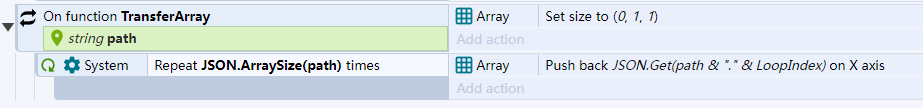

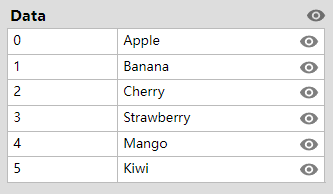

you want to store the data of items in the Array Object.

{"is-c3-clipboard-data":true,"type":"events","items":[{"functionName":"TransferArray","functionDescription":"","functionCategory":"","functionReturnType":"none","functionCopyPicked":false,"functionIsAsync":false,"functionParameters":[{"name":"path","type":"string","initialValue":"","comment":""}],"eventType":"function-block","conditions":[],"actions":[{"id":"set-size","objectClass":"Array","parameters":{"width":"0","height":"1","depth":"1"}}],"children":[{"eventType":"block","conditions":[{"id":"repeat","objectClass":"System","parameters":{"count":"JSON.ArraySize(path)"}}],"actions":[{"id":"push","objectClass":"Array","parameters":{"where":"back","value":"JSON.Get(path & \".\" & loopindex)","axis":"x"}}]}]}]}

Use: TransferArray("items")

2D Array

There is an json.

.
