  • You could also have the function return nothing and set some global variables instead that you’d use after calling the function. For example:

    Global number retx=0
Global number rety=0

Function rotate90(x,y)
— set retx to -y
— set rety to x

Every 1 seconds
— function: rotate90(sprite.platform.vectorX, sprite.platform.vectorY)
— sprite: platform: set vectorX to retx
— sprite: platform: set vectorY to rety

    You can do that with anything. Instead of returning a value you just save the result somewhere. Or if you want it to be more dynamic you could say, create an array, fill it with values and return the uid of the array. There are tradeoffs for readability and ease to use though.

  • Hi,

    No need to ever tag me. I don’t look at alerts and I skim over all the new posts when I visit the forum.

    I’m guessing you’re trying to do it by moving the head and having it leave a trail that everything else follows. One way to do it is add the head’s position to the front of an array, and just always position the body parts from an offset in the array. Finally you’d want a way to remove stuff off the back of the array when it gets too big.

    The main complexity here is the offset calculation. A simpler formula could be (self.iid+1)*30 to just have each part be 30 frames (or 0.5 seconds at 60fps) behind the part before it.

    (self.iid+1) gives 1,2,3,…etc
(self.iid+1)*32 gives a distance of every 32 pixels: 32,64,…etc
(self.iid+1)*32/100 if the head always has a speed of 100 this converts the distances to times
(self.iid+1)*32/100*60 Finally this converts the times to frames.

    So events would look like this

    Start of layout
— array: set size to (0,2,1)
— body: set offset to (self.iid+1)*32/100*60

Every tick
— array: push front head.x
— array: set at (0,1) to head.y
— body: set x to array.at(self.offset,0)
— body: set y to array.at(self.offset,1)

Array.width>6000
— array: pop back

    You’d just move the head however you like. And at 60fps and the head moving at 100 pixels per second the body parts would be connected. There are likely many improvements to this idea but that’s the simple gist.

  • Without a layer you could draw them to a drawing canvas at 100 opacity and then make the canvas have opacity.

  • Probably add a “for each mover” condition to the top of that event.

  • The pin lag has to do with the order the pin behavior runs among the instances. As you’ve noticed moving the object types around in the project folder can change the order of things but I wouldn’t consider that a great solution.

    However if you wish to solve it that way you probably can come up with a strategy. I’m guessing the object types list is ordered alphabetically. I’d imagine folders just are expanded in place so that would allow changing the order in that way.

    The second part would be to find an order where the lag doesn’t happen in specific cases. Depending on the pin configuration you may or may not be able to solve the lag in this way though, or at the very least you’d only be able to solve lag in a specific chain of pins I imagine.

    Alternately I’d just do the pinning in another way besides the behavior so that you’d have more control of the order of things. That could be wackyToasters suggestion or just setting the position somehow.

  • It’s probably easier to just use smaller images and more compressed audio and just let construct handle the loading.

    Construct’s docs say it loads images layout by layout, and audio is loaded as it’s used.

    My guess is what the loader does automatically is load the layouts and events data (which is very small) then loads the image files and maybe audio files, and then when changing layouts the textures are loaded/unloaded from video memory from the images.

    Anyways I guess one strategy would be to make all the animations use tiny images and load bigger images yourself from the files folder (which isn’t automatically at all).

    Overall it seems tedious to side step construct’s loading to do your own. Maybe do some tests?

  • Things you can search for is “trail”, “scarf”, or “cloth”. To get some ideas I realize the forum search isn’t the best, but you can also utilize google to search for posts too.

    At a glance of looking at footage of that game the scarf just looks like it’s a trail left behind from the neck. With maybe some waviness from a sine wave based on how far along the scarf. Or something.

    I don’t have a lot more to add at this time.

  • I guess the basic logic would be this. With no easing.

    var startX=0

on touch 0 start
-- set startX to touch.xat(0)

has touch 0
-- sprite: set angle to touch.xat(0)-startX

on touch end
--sprite: set angle to 0

    A simple way to add easing is to set a target variable which the actual angle is lerped to. Here i used curAngle as one more layer over the sprite's angle to handle the jump from 0 to 360 in a graceful way.

    var startX=0
var curAng=0
var targetAng=0

on touch 0 start
-- set startX to touch.xat(0)

has touch 0
-- set targetAng to touch.xat(0)-startX

on touch end
--set targetAng to 0

every tick
-- set curAng to lerp(curAng, targetAng, exp(-20*dt))
-- sprite: set angle to curAngle

    If you wanted to limit the rotation of the wheel you could just clamp() curAng.

    Now using lerp() in that way is ok for an ease out, but it will cause jumps if you change the target angle drastically.

    Lately I've found a lot of use for damped springs to do stuff like this. Here it uses the x motion of touch to drive the spring. The result is pretty smooth and even some overshoot when turning back to the rest position (although that can be tuned by changing the numbers in the spring event).

    dropbox.com/scl/fi/15r86pr9k1k6xvyjxul9y/steering_wheel_horz_touch.capx

    Also it's trivial to do the rotation based on how the touch drags around the wheel instead of just x. It's a bit more intuitive imo.

    dropbox.com/scl/fi/15r86pr9k1k6xvyjxul9y/steering_wheel_horz_touch.capx

  • You can check this by putting a sprite with z=0 next to the cube.

    The bottom of the cube has a z of 0 and the top will have a z of 100

  • move the knife to the bg layer

    edit:

    wait, you want it above the face but under the texture.

    Here's one way to do it.

    layer 1, Force_own_texture=true
-- face, blend=destination_in
-- bee_texture
layer 0
-- knife
-- face

  • It doesn't provide any other info in the browser console about why it's invalid, or which json file is invalid?

    I did a quick skim comparing your json with the sdk example on github and nothing stands out as amiss. Btw if you put source code in code tags (Ctrl+\) it's a bit easier to read on the forum.

    If it doesn't provide any more info, then I'd try taking the example on the sdk, see if that loads, then try incrementally changing that into your effect to hopefully find the issue.

  • You can calculate the speed from the xy velocities with:

    Speed=distance(0,0,sprite.physics.velocityx,sprite.physics.velocityy)

    Then you can make a condition to check is speed>maxspeed, and if it is then set the velocity to

    sprite.physics.velocityx*maxspeed/speed ,sprite.physics.velocityy*maxspeed/speed

  • Try Construct 3

    Develop games in your browser. Powerful, performant & highly capable.

    Try Now Construct 3 users don't see these ads

  • So... the OSM file format doesn't provide too much. With some fiddling you can parse out roads, building outlines, coastlines, etc...

    You'd have to infer bodies of water, or overlay it over some satellite imagery.

    dropbox.com/scl/fi/mmxnxbiinnwbk65lly8i0/osm_loader.capx

    You can even use ajax to query some websites to get an osm file from any lat/lon. However, what the games you referenced probably do is utilize something like this to get map/satellite imagery on the fly:

    developers.google.com/maps/documentation/maps-static/overview

    You do have to pay a subscription for such a thing.

    If you're happy with offline methods you could use something like this to get the satellite imagery, as well as the height or any 3d buildings directly from google earth. Although I will say the pipeline for using this is pretty poor and incomplete.

    github.com/retroplasma/earth-reverse-engineering/tree/master

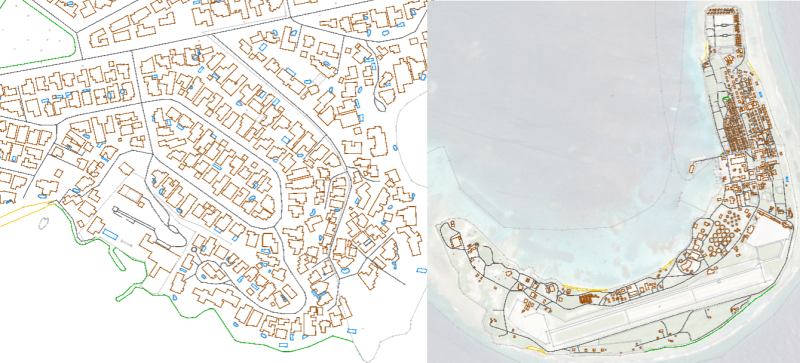

    For example I took some satellite imagery and converted it to a textured heightmap to use with mesh distort.

    dropbox.com/scl/fi/7k4acehi6zp9yx45lxal8/island_orbit.c3p

  • At a glance OSM files are just xml files. Load the osm files into the xml plugin and you can get anything you need from that. You'll need to get familiar with xpaths to navigate the file.

    I was slightly curious so here's a start. Add an osm file to the files folder of your project, access the file with the ajax plugin, and finally load it into the xml plugin.

    One basic primitive in osm files are "nodes" which give lat/lons of points. Here's a way create a sprite at every node. Note that you need to adjust the lat/lon to convert them to reasonable xy positions on the layout.

    xmin = float(XML.StringValue("/osm/bounds/@minlon"))
ymin = float(XML.StringValue("/osm/bounds/@minlat"))

start of layout
XML: for each node "osm/node"
-- create sprite at (float(XML.StringValue("./@lon"))-xmin)*3000, -(float(XML.StringValue("./@lat"))-ymin)*3000

    Another basic primitive are "ways" which are made up of a list of the ids of nodes. Basically, polylines. A way to handle those is to first add the nodes to an array, and use a dictionary to relate the node ids to the array indexes.

    Beyond that there are tags in the ways and nodes in the osm file that indicate if they are a river, road or whatnot, but I didn't see any obvious patterns. You'll want to refer to the osm file format perhaps.

    wiki.openstreetmap.org/wiki/OSM_XML

    You could go further to see if there are other things you can access from the file.

    If you want to access osm data dynamically from open maps on the fly then that's out of the scope of what i'm interested in. I just was getting the osm files in my tests by going to the openmaps website, navigating to where I wanted, and exported it.

  • Main issue I'm seeing is you're not reading the pixel from the right spot. The snapshot size won't be the same size as the drawingCanvas unless the window isn't resized or if the drawing canvas' resolution mode is set to fixed, and the resolution is the same size as the canvas.

    Anyways, a fix would be to convert the coordinates. Instead of

    x = Mouse.x
y = mouse.y

    use:

    x = Mouse.X*DrawingCanvas.SnapshotWidth/DrawingCanvas.Width
y = Mouse.Y*DrawingCanvas.SnapshotHeight/DrawingCanvas.Height

    or if the drawing canvas isn't positioned at the top left of the layout:

    x = (Mouse.X-DrawingCanvas.BBoxLeft)*DrawingCanvas.SnapshotWidth/DrawingCanvas.Width
y = (Mouse.Y-DrawingCanvas.BboxTop)*DrawingCanvas.SnapshotHeight/DrawingCanvas.Height

    dropbox.com/scl/fi/c9zekz1ru5pzw6u26mxon/read_pixels.c3p

    EDIT:

    Looks like these three expressions are approximately the same. So you could just divide the mouse position by the pixelScale. The fact that all three aren't all the same is another c3 issue but shouldn't matter too much.

    DrawingCanvas.SnapshotWidth/DrawingCanvas.Width

    DrawingCanvas.SnapshotHieght/DrawingCanvas.Height

    1/DrawingCanvas.PixelScale

    Edit2:

    If you manually set the fixed resolution mode size, then don't use pixelScale.
