[PLUGIN] Canvas

R0J0hound Not entirely sure which is the more up to date version of the canvas plugin so is it possible it can be posted below?

It should be the one in the first post.

There is an issue with the dropbox files giving an error 404

Ah. Guess I never got around to fixing it.

Here’s a list with what should be working links.

construct.net/en/forum/extending-construct-2/addons-29/r0j0hound-plugin-list-135781

Hey, i have a problem with clicking on objects as they're on on of the other layers behind the canvas, so their X & Y Coordinates are different.

Is it possible to do "On touched object" right in the canvas? And how?

Hello Dears :

is there any chance to save canvas after draw , and reload it later

save and load is not working with Canvas :(

Worst case you can use canvas.imageUrl to get a save of the canvas image. Then to load it you’d take a sprite at the same position as the canvas, load the imageUrl into an animation frame of the sprite, set the sprite size to the same size as the canvas, clear the canvas, and finally paste the sprite into the canvas.

On a side note the plugin did save/load the image at some point. It possibly could have been disabled in code since it was slow, but I don’t recall. I don’t use the plugin anymore and have ceased any development on the plugin itself to fix issues that crop up.

I am happy to try to help with usage questions when I can. Probably not with examples, since I don’t have it installed, but maybe I can help point you in the right direction.

That would have to be done inside the plugin, and that’s what save/load actually does. However, no, there’s nothing implemented on that front.

You can use the canvas.asjson expression to get some json that can be loaded into the array object, but it’s not reversible.

R0J0hound I have a code to create the content of the canvas in a tiff image, I tried to create both in action, as in the expression in eddittime and runtime of your plugin, but it is returning as an undefined object

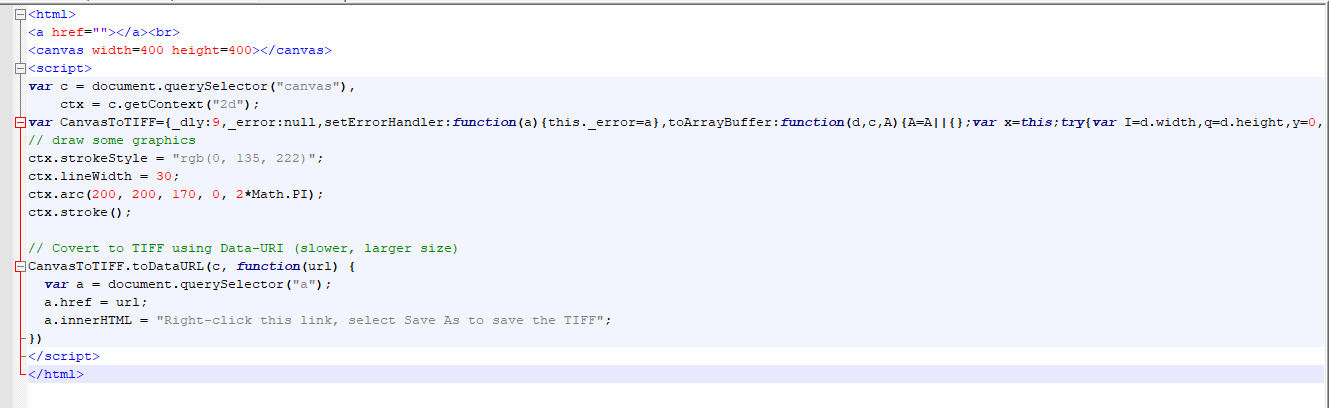

this is the original code

I tried as much of the action, as this one now of expression or taking the url or going but always returns as an undefined object, even converting the variable c to this.canvas

Tomycase

The plugin was made to utilize the non webgl renderer. Even with webgl on it uses the non webgl drawing of plugins. Things like tilemap sets up itself internally different with webgl. So in short it won't work, although you could try the paster object which takes advantage of webgl and is similar.

marceloborghi

That's out of the scope of what I can help with. I'll answer questions about the plugin here and there, but I've since abandoned this. Anyways, you'll have to debug it more to see why it doesn't work. I usually have to test things a bit at a time to find out what works and where exactly it breaks and try to figure out why.

That's what I'm doing by splitting the return into parts, the canvas is returning right, the canvastiff variable apparently also before generating any results, but when I associate the function associating the datatourl parameter within the canvas url variable and targeting the canvas of the your plugin there is undefined ... I tried different ways and the same result. I think about making a comparison if the return is undefined to return and put the value below, I saw this work in another plugin developed by a third party (I thought about it today, but haven't tested it). Anyway, I appreciate it R0J0hound.
