How do I make a tank turrent move independently from tank body?

Post reply

❤Follow Topic(3)

0 favourites

8 posts

From the Asset Store

Tanking Tanks

$100 USD

Try to destroy your enemies in a hard battle! Good luck!

paradine

- eka
- - Joined 11 Jun, 2015
  - 34 topics • 72 posts
- 1
- 2 Sep, 2019
- Quote
Hi,

As the title say, I'm working on a top down tank game and I need to move the tank with arrows and the turret to point to the mouse.

Any help?
- Asmodean
- - Joined 31 Jul, 2015
  - 16 topics • 923 posts
- 2
- 2 Sep, 2019
- Quote
I would simply use pin and pin the turret without angle on the tank body.

I made an example:

https://drive.google.com/open?id=108ZUT6WVjsKxZFtkQC-V_dn70c65WG-L
- eka
- - Joined 11 Jun, 2015
  - 34 topics • 72 posts
- 1
- 2 Sep, 2019
- Quote
I would simply use pin and pin the turret without angle on the tank body.

I made an example:

https://drive.google.com/open?id=108ZUT6WVjsKxZFtkQC-V_dn70c65WG-L

Asmodean hi, thanks for the example, but I can't open it, it says that was made with a future version of Construct 3?
- Asmodean
- - Joined 31 Jul, 2015
  - 16 topics • 923 posts
- 2
- 2 Sep, 2019
- Quote
I have the beta release enabled. try editor.construct.net/r163
Try Construct 3

Develop games in your browser. Powerful, performant & highly capable.
Try Now Construct 3 users don't see these ads
- eka
- - Joined 11 Jun, 2015
  - 34 topics • 72 posts
- 1
- 2 Sep, 2019
- Quote
I have the beta release enabled. try editor.construct.net/r163

Thanks a lot for the help, this is great.

Later when I open editor.construct.net, will it open the latest stable for me? or it was just upgraded to Beta?
- Asmodean
- - Joined 31 Jul, 2015
  - 16 topics • 923 posts
- 2
- 2 Sep, 2019
- Quote
If you don't change it in the preferences and use editor.construct.net (without any /rxxx) it should be the stable r157.
- eka
- - Joined 11 Jun, 2015
  - 34 topics • 72 posts
- 1
- 2 Sep, 2019
- Quote
Asmodean

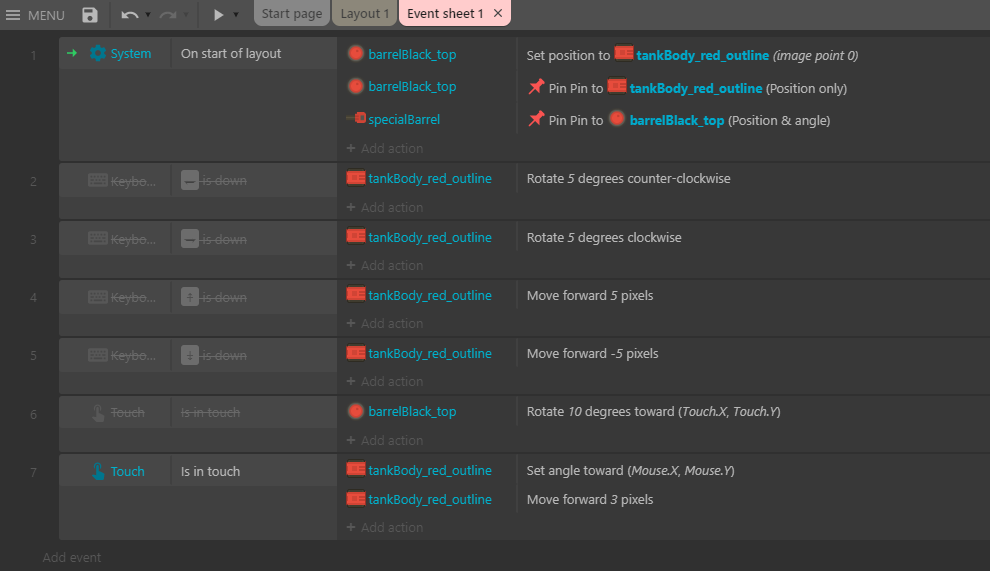

I made some changes and I make the tank follow the mouse, but when I release the button the turret goes back to original position, any idea why?

Subscribe to Construct videos now
- Asmodean
- - Joined 31 Jul, 2015
  - 16 topics • 923 posts
- 2
- 2 Sep, 2019
- Quote
It points to 0,0 (top, left corner) of the layout. That happens if you use touch.x touch.y without a condition. So, if there is no touch event the x and y values will be 0. I think this happens because auf event 6. You disabled the condition but not the action. So every tick the turret rotate to touch.xy and this ist 0,0 if you don't touch the display or click the mouse.
