Hi

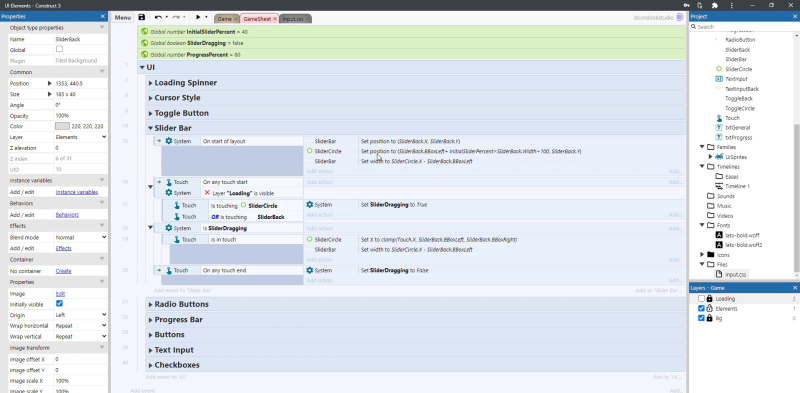

I have a custom slider that I created using this tutorial (with slight changes):

Subscribe to Construct videos now

I have a Global number InitialSliderPercent = 100 (so by default it is fully filled)

I also have another object whose angle I want to change when the slider moves.

On start of layout that object probably is at 0 degrees and when I move the slider that object must rotate (change angle) to the left to a maximum of -120 degrees (when the slider circle is on 0).

How to rotate/change angle of the object from 0 to -120 (degree by degree) by changing the position of SliderCircle.X from SliderBack.BBoxRight to SliderBack.BBoxLeft?

I will be grateful for your help.
Tagged:

angles
rotate
slider
Try Construct 3

Develop games in your browser. Powerful, performant & highly capable.
Try Now Construct 3 users don't see these ads
- oosyrag
- - Joined 20 Feb, 2013
  - 61 topics • 4,717 posts
- 2
- 2 Jul, 2022
- Quote
Object set angle to anglelerp(0,-120,(SliderBack.BBoxRight-SliderCircle.X)/(SliderBack.BBoxRight-SliderBack.BBoxLeft))
