  • Done it!

  • Ok so I have this finally working, with one snag.

    I have my layouts all with the global "menu" layer that is "hidden" by default.

    I then have a button on each layout which makes the layer visible (making my menu show, full screen)

    the problem is then, how do I make that layer invisible again as now all objects from the layout are covered up with the UI layer and objects on the UI layer dont have access to the the layouts event sheet?

  • So this "appears" to be Global Layers?

    When I set the menu layer to global, then include it inside another layout it appear in the editor, however, the objects ONLY show in the editor. when i run my project, the objects from that global layer do not show, just the background?

    Bug or doing something wrong?

  • Hi, I have about 10 layouts (so far) in my project and have decided I want to be able to toggle a menu of some sorts on each layout.

    The issue is, the menu items could change and it seems very inefficient to have to create the menu and its events each time for each layout (in design time).

    I am sure there is a way to do this where I can create the menu, its events and somehow make it universal across all layouts?

    Global layers? Include Event Sheet?

    Anyone guide me in the right direction.

    Thanks

  • Hi, I have reported this as a bug but was wondering if anyone else had had the issue or can confirm the issue is not just with me.

    To reproduce, export an app with a text box. Viewport Fit to Auto or Cover and Fullscreen to again any, but lets say letterbox scale.

    When installed (on my iPhone XR), what I see is once clicked in the text box the viewport shifts up (thats fine), when you close the keyboard the viewport either doesn't come back down, or it does but not all the way - leaving black area.

    Thanks

    Andy

  • Example of denorm and clamping.

    > /////////////////////////////////////////////////////////
// Barrel

//The current foreground texture co-ordinate
varying mediump vec2 vTex;
//The foreground texture sampler, to be sampled at vTex
uniform lowp sampler2D samplerFront;
//The current foreground rectangle being rendered
uniform mediump vec2 srcStart;
uniform mediump vec2 srcEnd;
//The current foreground source rectangle being rendered
uniform mediump vec2 srcOriginStart;
uniform mediump vec2 srcOriginEnd;
//The current foreground source rectangle being rendered, in layout
uniform mediump vec2 layoutStart;
uniform mediump vec2 layoutEnd;
//The background texture sampler used for background - blending effects
uniform lowp sampler2D samplerBack;
//The current background rectangle being rendered to, in texture co-ordinates, for background-blending effects
uniform mediump vec2 destStart;
uniform mediump vec2 destEnd;
//The time in seconds since the runtime started. This can be used for animated effects
uniform mediump float seconds;
//The size of a texel in the foreground texture in texture co-ordinates
uniform mediump vec2 pixelSize;
//The current layer scale as a factor (i.e. 1 is unscaled)
uniform mediump float layerScale;
//The current layer angle in radians.
uniform mediump float layerAngle;

//effect.fx
precision mediump float;

uniform mediump float scale;

void main(void)
{
mediump vec2 n = (vTex - srcOriginStart) / (srcOriginEnd - srcOriginStart);

vec2 st = n - 0.5;
float theta = atan(st.x, st.y);
float rad = sqrt(dot(st, st));
rad *= 1.0 + scale * pow(rad, 2.0);

n = clamp(vec2( 0.5 + sin(theta) * rad, n.y), vec2(0.), vec2(1.));

gl_FragColor = texture2D(samplerFront, mix(srcOriginStart,srcOriginEnd,n));

}

    Thank you for this and all who helped, managed to get this working as planned.

    A negative scale caused a pincushion along X and positive scale causes barrel along X.

    Thank you

  • Thanks Nepeo,

    I have actually already tried that and although the "distorting" works there is some stange things happening when you scroll on layout or move the sprite.

    And the depending on the "amount" of distorting you set seems to effect the overall size/zoom of the sprite.

    //effect.fx
precision mediump float;

varying mediump vec2 vTex;
uniform lowp sampler2D samplerFront;

uniform mediump float scale;

uniform mediump vec2 srcStart;
uniform mediump vec2 srcEnd;

void main(void)
{
 mediump vec2 n = (vTex - srcStart) / (srcEnd - srcStart);

 vec2 st = n - 0.5;
 float theta = atan(st.x, st.y);
 float rad = sqrt(dot(st, st));
 rad *= 1.0 + scale * pow(rad, 2.0);

 gl_FragColor = texture2D(samplerFront, vec2( 0.5 + sin(theta) * rad, n.y));

}

    Andy

  • I am still battling this. The only issue I see is that i cannot workout how to bring through from construct the "resolution" or the sprite size in pixels.

    Based on the following simple method which works on shadertoy (https://www.shadertoy.com/view/3d3SW4)

    the following line:

    vec2 uv = gl_FragCoord.xy/iResolution.xy;

    using a uniform input called iResolution which according to shadertoy is the following:

    uniform vec3 iResolution; //viewport resolution (in pixels)

    How do i get that in C3?

    Thanks

    Andy

  • Try Construct 3

    Develop games in your browser. Powerful, performant & highly capable.

    Try Now Construct 3 users don't see these ads

  • Thanks Nepeo,

    I am in the same boat as you, its very frustrating as I just cannot get it to work in c3.

    Hoping someone comes along who can get it to work.

    I have managed to put it into shadertoy making it much simpler and using an image.

    however i still cant get it to work in C3??

    shadertoy.com/view/3d3SW4

    Andy

  • > I have found this but cannot get it to not not effect Y shift.

    >

    > thebookofshaders.com/edit.php

    >

    > Hope this helps.

    >

    > Thanks

    You mean like this?

    > 	// Author: Florian Morel
// Title: glsl-barrel-pincushion example

#ifdef GL_ES
precision mediump float;
#endif

uniform vec2 u_resolution;
uniform vec2 u_mouse;
uniform float u_time;

float rectangle(vec2 st, vec2 size, vec2 aastep) {
size = vec2(0.5) - size * 0.5;
vec2 uv = vec2(smoothstep(size.x - aastep.x, size.x, st.x), smoothstep(size.y - aastep.y, size.y, st.y));
uv *= vec2(smoothstep(size.x - aastep.x, size.x, 1.0 - st.x), smoothstep(size.y - aastep.y, size.y, 1.0 - st.y));

return uv.x * uv.y;
}

float lines(vec2 pos, vec2 axis, float gridSize, vec2 aastep) {
float lineWidth = 1.0;
vec2 gridPos = pos / gridSize;
vec2 gridFrac = abs(fract(gridPos) - 0.5);
vec2 g = clamp((gridFrac - aastep * (lineWidth - 1.0)) / aastep, 0.0, 1.0);
float c = g.x * g.y;
return 1.0 - c;
}

vec2 barrelPincushion(vec2 uv, float k) {
vec2 st = uv - 0.5;
float theta = atan(st.x, st.y);
float radius = sqrt(dot(st, st));
radius *= 1.0 + k * pow(radius, 2.0);

// return 0.5 + vec2(sin(theta), cos(theta)) * radius;

return vec2(
0.5 + sin(theta) * radius,
uv.y

);
}

void main() {
vec2 st = gl_FragCoord.xy/u_resolution.xy;
st.x *= u_resolution.x/u_resolution.y;

vec2 aastep = 2.0 / u_resolution;
float k = sin(u_time);
st = barrelPincushion(st, k);

float shape = rectangle(st, vec2(0.5), aastep);
shape -= rectangle(st, vec2(0.49), aastep);

vec3 color = vec3(1.0);
float mask = rectangle(st, vec2(0.5), aastep);
	color += -mask * lines(st, vec2(0.0), 0.05, aastep * 10.0);

gl_FragColor = vec4(color, 1.0 - shape);
}

    The magic is in the barrelPincushion function, the rest is basically for generating and drawing the rectangle. Previously it was taking an input co-ord, transforming it and returning the result. I modified the output to return the new co-ordinate for the X position, and the old for the Y.

    Hi Nepeo, that is spot on, I will have to try and get this into a C3 effect now. Unless you can trim this down for me to make it easier to implement?

    Edit: Im not having much luck due to my lack of knoweldge with C3 and Shaders, anyone like to try and put the above magic function into something that will work with c3?

    Thanks

  • Hi thanks, its sort of what I want but not.

    Ideally I want the shader to act on the sprite its self and not have to have another sprite act as a lens.

    Also i want it to only effect the X axis and not shift Y axis.

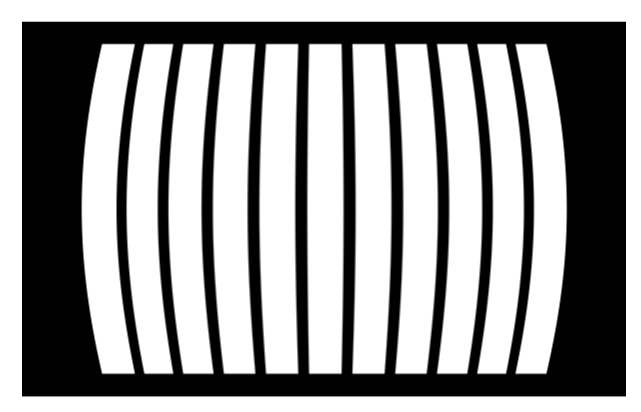

    I have attached the shape which I am trying to get back to as near rectangle as possible.

    I think actually what i am looking for is more a pincushion effect?

    I have found this but cannot get it to not not effect Y shift.

    https://thebookofshaders.com/edit.php?log=180726191628

    Hope this helps.

    Thanks

  • Hi, I am trying to find an effect that will remove (or add) barrel distortion along the Y axis.

    Does anyone know of an effect or know how to create/edit an effect to do this?

    Thanks

    Andy
