FictionalAroma's Profile

FictionalAroma
- Joined 30 Jan, 2023
- 4 topics • 14 posts
1

17 Oct, 2023
Quote

So in the end I kinda bit the bullet and went for the obvious - iterate over the objects and do the checks for each WI unfortunately.

For this current project each layout is the size of the viewport so cssPxToLayer shouldn't have any issues with parallax/floating UI, but ill add a "dictionary" for layers so I don't have to do the coordinate conversion for every object!

 let mouseXYAr = this.towerLayer.cssPxToLayer(pointerEvent.clientX, pointerEvent.clientY);

 // go through each family of objects to ignore
 // if we find we are clicking on litterally any, return out do nothing
 const familiesToIgnoreIfClick = ["UITextButtons", "UIButtons", "UIOverlays"];

 // do an any of families has any clicked items, if yes, bail method
 if(familiesToIgnoreIfClick.some(family =>
 this.runtime.objects[family].getAllInstances().some(
 wi =>
 wi.layer.isSelfAndParentsVisible &&
 wi.layer.isSelfAndParentsInteractive &&
 wi.isVisible &&
 wi.containsPoint(mouseXYAr[0], mouseXYAr[1]))
 ))
 {
 // bail out if ANY
 return;
 }

Try Construct 3

Develop games in your browser. Powerful, performant & highly capable.
Try Now Construct 3 users don't see these ads

FictionalAroma
- Joined 30 Jan, 2023
- 4 topics • 14 posts
1

16 Oct, 2023
Quote

Currently I am working on a Tower Defence game using a combination of Scripting for the data tracking and Event Sheets for the basic behaviours.

I have the Towers being placed on the Tilemap Grid reliably, and can determine when I select a Tower object on the Tap before doing the grid coords.

While I CAN go manually through families of objects I setup, like the on-screen Pause Button, is there an easy/simple way to determine if I HAVENT tapped anything on a layer? Or at least a way of getting all objects within a layer without having to iterate over the whole object set?

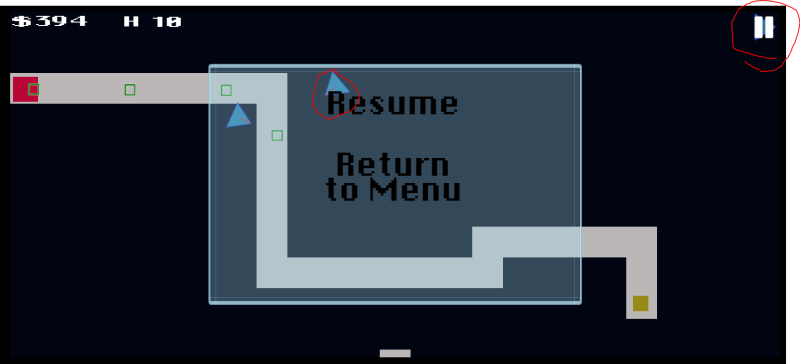

Please find below my current OnTap "event" code, and the circles of the towers that have placed after I "tap" a text item

 OnTap = (pointerEvent) =>
 {
 if(this.gameOverHit) return;

 let mouseXYAr = this.towerLayer.cssPxToLayer(pointerEvent.clientX, pointerEvent.clientY);
 const towers = this.runtime.objects.Towers.getAllInstances();


 const foundTower = towers.find(s => s.containsPoint(mouseXYAr[0], mouseXYAr[1]));
 if(foundTower == null)
 {
 mouseXYAr = this.gridLayer.cssPxToLayer(pointerEvent.clientX, pointerEvent.clientY);
 if(this.tilemap.containsPoint(mouseXYAr[0], mouseXYAr[1]))
 {
 const tileSizeX = this.tilemap.tileWidth;
 const tileSizeY = this.tilemap.tileHeight;

 const cellCoords = [Math.floor(mouseXYAr[0]/tileSizeX), Math.floor(mouseXYAr[1]/tileSizeY)]
 const towerMapResult = this.TowerMap[cellCoords[0]][cellCoords[1]];
 if(towerMapResult != true)
 {
 if(this.currentMoney >= 10)
 {
 this.UpdateMoney(-10);
 this.runtime.objects.basicTower.createInstance(2, cellCoords[0]*tileSizeX + tileSizeX/2, cellCoords[1]*tileSizeY + tileSizeY/2, true, "");
 this.TowerMap[cellCoords[0]][cellCoords[1]] = true;
 }
 }
 }
 }
 }
