Any tips for working on large projects?

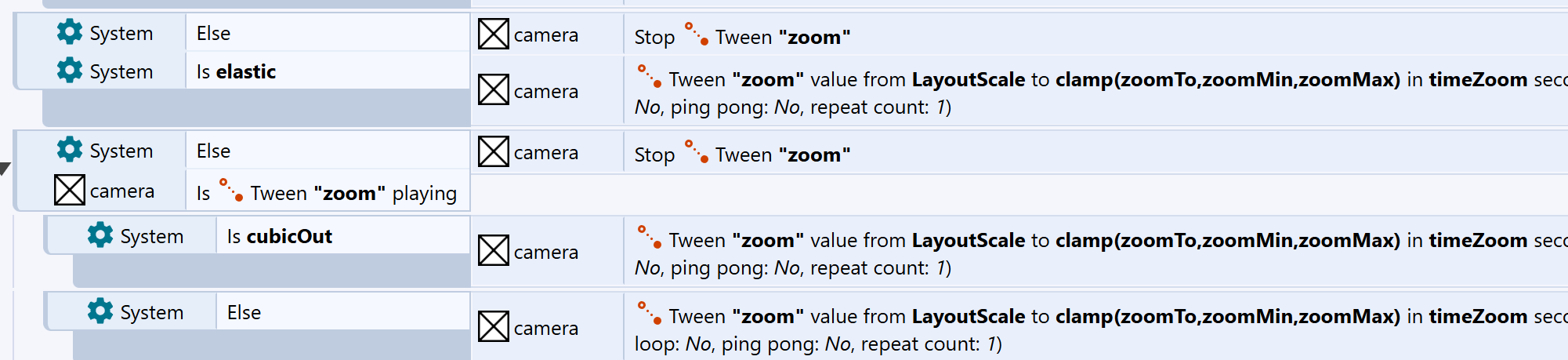

The camera does not use asynchronous events, we run Tween, it changes the zoom variable, which is also affected by other actors.

In my particular case, the camera is complicated by the fact that one layout can have several separated locations with cameras and they are logically limited by additional variables. This makes the work somewhat inconvenient, but sometimes it is useful. For example, if you need to quickly teleport through a maze of mini-locations.

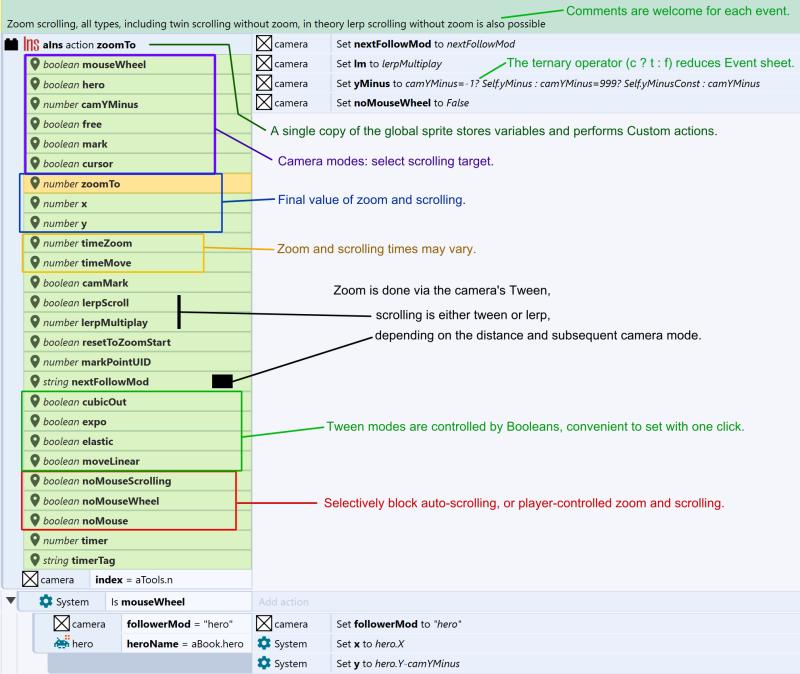

> For cutscenes and game events I ended up writing a camera with 23 active parameters - zoom and movement via tween or lerp with various curves, optional input blocking and types of hero tracking and forced scrolling. This saves a lot of time now.

envoys: Can you describe your cutscene camera a little bit? The story I want to tell is pretty visual with lots of "sight gags". I can't afford to pay for all that animation so I'm thinking about using static comic panels and the timeline editor to scroll and zoom as needed. (Maybe with some limited animations here and there.)

Sorry for the delay, description above.

For scrolling and zooming comic panels, I think a tween camera would also work.

Thanks for the reply, envoys!

I'm a longtime Construct user, but basically a 63 year old idiot. ;-) So I'm confused about what you mean by a "camera". I assume we are talking 2D and not 3D, right?

Is your "camera" a block of code (or function) that controls the viewport?

I call it a camera because I use a 2.5D perspective with a variable angle to the horizon. But it's just zoom and scroll.

Create a global variable zoomLayout (for example) and every tick use the Set scroll layout system action. Assign it the value of your zoomLayot variable. Now the scaling is equal to your variable and you can conditionally use Set scroll layout clamp(zoomLayout, minZoom, maxZoom) to limit the zoom as you wish to the minZoom and maxZoom variables.

Next, create a Camera sprite with the Tween behavior, use Tween(Value) to change the value of the zoomLayout variable with clamp. Voila, you have a camera for cutscenes based on system expressions and behavior. The Sinusoidal curve will give a natural softness of the start and stop, and the Elastic - the shaking of an important event.

To use custom scrolling, you should not have objects with the Scroll To behavior (there are tutorials on how to do this via Lerp). Roughly speaking, the camera sprite is followed by the vievport system action Scroll to position. And the camera follows the hero via lerp buffering. For zoom, lerp can be disabled and Camera Tween X, Y can be used to move the camera.

I remember in C2 there was a plugin called "Magic camera". C3 allows you to reproduce this plugin with more pleasant camera movement using built-in tools.

Controller restrictions are needed if you zoom with the mouse wheel (for example), and scroll after the cursor or the hero.

You need to have a lot of time, a lot of patience, a lot of experience, imagination and you need to have money or a sponsor for the programs you need. You need help to make the graphics, animations, music and more. You can look for free and cheap programs like Inkscape, Gimp, Aseprite.

But my biggest advice is not to lose motivation and inspiration because it is a long road. It is a shame that it is no longer like 15 years ago when you could download any program and use it with some crack or pirate key.

Make a single post with suggestion is too long, I actually was planning to write a book about it once I will get a bit of free time. Anyway, I agree with all the ones that suggest to organise your project putting variables in one dedicated Event Sheet, also as Ashley suggested, i start to use Static Local variables when things are getting crowded, also in the debugger they are listed separated from the other variables.

Here is I organise Constant and Variables, I start with Constants, written all in CAPITAL letters, Variable have instead only the first letter of each word as capital, unless is a conjunction or similar, also I add _ (underscore) between constant and variables name to make it easier to read them. Also comment always variables because when you use them in the events, you can see the description and I like to have reminder about the possible values they can have, like for example variable Location has as description (House, Village, Cemetery, Dungeons) those are the values I can use for my game. In this way if you go back after a while on your project, you don't have to worry if the value was Village, Town or City, you will be shown that it has to be Village.

When you give name to constant and variables, try to have them in a big category first and then go on more details, it will be easier to type and found them. As from my screenshot you can see that I am using for example SLOT_PLAYER_FRONTLINE, if you have instead them called as PLAYER_SLOT_FRONTLINE, while start to type you will probably get lots of variables that start with Player as your game becomes big. This is an easier way to find and remember variables. Since you know that you are looking about something related to the Slot object, then next thing is the Player's slot or the Enemy's slot? And finally, which type/location of Slot?

Moving on, a thing that will probably need to use a lot will become Arrays, I use plenty of them in basically nearly of all my games.

For the Array, make a separate Event Sheet from Constants and Variables one, to make it easier to find what you need.

Create Constant for your Arrays, to identify Rows and Columns and eventually even the Z axis. In this way it will be like having the title of those in the first row and column of excel. You don't need to remember what is Array_Cards.At(loopindex, 1), you can just easy read it as Array_Cards.At(loopindex,CARD_NAME), so going back to check your code you know that you are looping through your Array reading the Cards' Names.

As you can see from the screenshot, I divide them according to the Array and I give names related to the Array name itself, but I don't mention the word Array in the constant because again, I would receive so many suggestions when typing variables.

Finally, still related to the Array, things are getting easily out of hand when you start to have ten or more different arrays, therefore under those array constants, I create a sub group that encloses all comments that explain the structure of each array. This is not useful only if you work by yourself, but also if someone else is going to read your program.

Here another screenshot of my game current in development. It's a card game and needs a few arrays to handle all the things:

As you can see, in the example, X is used as index of the card (first card, second card, and so on), while the Y is basically the details of each card.

Going back to the array constants, it's not easy to also add some values in between arrays, if you want to expand or even reduce fields, so what you will have to do is to go to the comment of the Array Structure, add the line you need. For example you want to have "Cost", after the name, so you add a line there. Then you go back to the constants and change their value. That means that you don't need to go to check anywhere in your thousands lines of code the value to alter, you just change it from the Array event sheet once and you are good.

Last thing you can notice from the last screenshot, is how I organise groups, sub groups always mention the main groups to show the whole "path", so when you enable and disable them you easily understand which one is which and it's also easy to recall them while typing.

Same things applies to function names.

I will stop here since the list of things you can do can really be covered only by writing a book. Other suggestions are:

- Track the event workflow adding Logs through the Browser plugin (you can check them pressing F12 and going in the Console Tab of your browser)

- Make a small project first, then add stuff. Have a complete one level game, then add more levels later. You will always have the game ready to be published at any time, in case you have to cut it short because you run out of time or money.

dop2000

> I have two objects for "global stuff" - a sprite (invisible, global) and JSON. The sprite is for variables I use often, and JSON for everything else.

> The sprite also has Tween, Timer, and LineOfSight behaviors, so I can run occasional timers/tweens or cast a ray when needed.

Please could you expand upon this a little? What do you mean by "The sprite is for variables I use often" and how do you use the JSON?

I understand adding Tween and Timer behaviours to some object as they can then be used anywhere else - I've always found it odd that Timers in particular had to be associated to an object and not just global.

he just using a global sprite, that can be visible across entire game, like lets say u want a small logo to be seen on all pages, you can use that logo's ability to add "instance variables" on it, that will act as global variables, this has been a thing for a long time. is like a "workaround" around the 50 events limits which take 1 event away from free users even by simply adding globals.

useful to keep in mind, but if u have a big project, problem with it is that it might glitch, simpler would be to make ur values in an array or dictionary, unlimited size data to be kept in, just is more dificult to fetch and store data.

the logo/sprite in question can also be invisible out of screen as long as u remember not to delete any sprite that is outside the screen. or u can keep it in the hud layer that stays always in screen and make it invisible, but that will slow down ur games, even if is invisible, the data there will slow down ur game resources, because "invisible" actually is not invisible.. is transparent and everytime u fetch 1 variable the gpu trying to render that sprite which uses a little bit more resources in spikes... and if u fetch consequencely 10-20-50 variables from that sprite ur game will have a spike "load freeze" on read/write data.

About global variables

If you use a dictionary you have a more awkward time debugging a variable in a watch statement. I haven't used the global sprite yet but this seems like one of its advantages.

yours

winkr7

My advice for a big project is : add custom notes everywhere and try to make your code as short as possible (because even if you do so, you will probably have thousands of events).

You will work on this project for several years, this means that you will often have to work on some code that you wrote 6 monthes ago, or even 1 or 2 years. Take the time tu put detailed notes in your events in order to help your future you remembering quickly what you have done.

This is my process : for every feature, i write a first "functional" version of the code. Then, i try to simplify it in order to get rid of unnecessary and redundoant things. Finally, I write a custom note on almost every event and sub-event to describe what I am doing and why I am doing like this.

This process is very helpfull in the long term.

Another advice would be : use massively the functions and the function mapping ! This is a very usefull tool, especially for bigger projects.

here are my tips for large scale projects

coment everything on spot, even if takes double the ammount to properly do it, document everything as many said above me.

You need basically to create a "user manual" or better said a "dev manual"

when you make games or software that is 1000 -10,000 lines of code maybe you don't need that many comments.

but if you are going above 10,000 lines of code or in Construct events, you might want to do so...

also as many suggested, layers events and layouts, name them accordingly, early in C2 and classic someone used this format and i since followed it instinctively for Construct cause it made sense and its easy to find stuff

for example you have Intro screen and the events sheet for it will be ES_Intro_Screen

that will differentiate between the layout and event sheet, not wasting time clicking back and forth trying to figure out which one is which, especially when u got like 10 event sheets opened or 10 layouts opened.

latest C3 now has colored comments, i use that feature instinctively since implementation, reason?

RED is danger (meaning properly comment stuff and alert lines), Orange mid danger (meaning above medium danger if modified stuff might brake and cause weird glitches), yellow somewhat danger (some visual glitches or missalignments), green "animation stuff" "hud lements" - no danger if altered wrong, maybe some display not showing.

folders in project - i used this structure for my project usually

"g-spot" = plugins (mouse,touch,audio,etc) - all plugins that i use goes in this folder - (i name it usually like that or core but not to mess with the engine core - i usually give it a "sensitive naming" because once u mess with it, things go hot in weird places.)

"hud elements" - everything hud related (for in-game) goes in this spot

"menu items" - all menu items goes here

"character" - everything related to character goes here

"intro screen" - all intro/loading screen goes here

and u can do this for everything just keep track of them in a proper manner.

global variables - now here as the latest post in this topic there are a few factors to consider

are u confortable with using "workarounds" or sacrifice "memory usage" for sake of "development purpose" ? or u care more about how the "game performs"?

sometimes i find that what i think makes sense to me as a dev, is not always healthy for the game "resources" and i tend to do more harm then good, while is easy for my work it will clutter the project and barelly open it up in some cases.

that's why i prefer using Arrays, dictionaries or instead of the actual dictionary plugin, a json/xml file, or most of times i just make a Variables_event_sheet that i include in everything as "globals" and "graphic dump" layout to make every sprite first instance renderable and not having to worry about if i can call "create object" if object is not placed in a layout somewhere.

famillies - are your friend, no matter how good you are at simplifying things, you will find famillies are the best - like touretto says "all for the familly" and in our case .... its just true, famillies are one of the most powerful tools you can use in a project, learn to use them, when to apply them and how they interact with other project objects will make ur life easy.

json/xml/array - you want to learn this how they function how to properly make a grid, how to read and write them etc. plenty of examples plenty of tutorials just grind till u get the hang of it, it looks scary in beginning but are easy actually, requires somewhat some logical thinking.

entry level html5,css,javacript knowledge - if you want to understand how C3 works, will help you long run to understand this 3 languages. they are a must in everyones repository as developers,jquerry optional not really needed since javascript does similar stuff nowadays and sometimes even better.

functions - now here... i seen projects doing functions and were a masterpiece when looking at the code, and i seen projects that would make you hurt just reading the names of some of the functions ... avoid naming everything the same with 1_2_3_4_5_6 at end or in front, unless imperatively needed or required for some reason.

and going back to my first recomendation ... ALWAYS keep track of your code, i personally changed my style of coding lately, from just implementing in, implementing and while my head is hot and in the moment add comment immediately, otherwise i close i go to sleep, come back, and i look at it like some stranger made the code... and dont understand a thing of it.

always document your progress

oh and since i mentioned progress... turn autosave on, and make a habbit in making a backup, even if u "ctrl+s" by now as a tick response, "save file corruption" is a thing.

late development stages, streamline everything, find a better way to make ur code faster to read and run, reduce image sizes, and code. The shorter everything is and smaller the less memory usage your game will use, the greater experience the user will have.

Advertising - early in development across the years, decades by now, devs would stick ads on all pages of their game, bottom, top, spam full screen ads, video ads etc, you name it.

Personally i never liked that because before making games, i played games, and i hated watching advertising especially forced ones.

So one perfect model for advertising is a fairy dancing on ur screen saying hey "you want to watch some ad? you get X ammount of gold or diamonds or whatever, by watching this you help me as a dev and also u get something from it... you dont want to watch an add now? ok il come back later buzz u later"

that is the perfect model, piratesoftware mentioned this also in some of his twitch stream, but i totally agree. Also if users buy your game, and u have a in-game store for purchasing items etc ... don't make them powerful, make them design choices, especially if its a multiplayer game. it just ruins the mood as a player to grind free mode in watching them ads and diamonds and whatever and then some guy just comes in trows 100$ in ur store and bam top1% rank in leaderboards. while the rest grinding months in ur game. is toxic avoid it.

if you really want to give "a powerup" for donations or in-game stuff do this, instead of giving level 100 gear to the "payup" guy.. sell instead the ability to grind faster, or the ability to get 2x rewards if he watches the fairy ads or something that is a bit OP in balance of the free user that only paid for ur 5$ game or 20$ game, but can't afford to pay another 1000$ in-game supplies.. make it fair for everyone.

A good example here is the way POE is doing it, they sell goods and services, but the game is free, u can buy materials in game etc but all the in-game purchaseable items, don't give u any powerup are just super cool visuals nothing more.

and sort of this are my personal tips, you will find, that most of them repeat with a recurring theme with other devs, thats because its a "right way of doing things" which most devs will find and there is a "let the world burn way" of doing things.

hope it helps.

but u have to take in consideration all objects in screen are rendered by canvas... even if the system is saying is "invisible" once in screen they are actually transparent, and believe it or not... rendering "transparency" uses more memory then actual colored pixels.

No, you’re wrong. Check out this demo — make the sprite invisible, and you’ll see that GPU utilization stays 0% even with tens of thousands sprites.

Besides, this whole thing is moot because I’m not creating 100,000 invisible objects with 100,000 variables. It’s a single sprite with about 100 variables — zero impact on performance.

but is easy to remove a sprite by mistake once outside the screen.

That’s why my sprite has big text saying "DO NOT DELETE" on it. Plus, I have only one instance of it in the Loader layout, which I rarely even open in the editor.

thats why i suggest better use json, arrays, dictionary anything that its purpose is to keep number values, text values by default.

Oh, I do. I have about 30 different JSON objects. But for frequently used values, instance variables are much more convenient.

but considering C3/C2 is mainly used for tablets and phones, i know from past experiences sprite objects, and many instance variables on them, will glitch, like the variables will fail to be read and written.

No, that never happens. These so-called "glitches" are always due to user error.

especially a sprite is easy to delete by mistake, or change its designated state by simply adding it in a familly by mistake, and then "woops" the familly gets destroyed when shot

Just like you can accidentally delete an array, dictionary, or global variable?

These things are easily avoidable if you just pay a little attention to what you’re doing.
